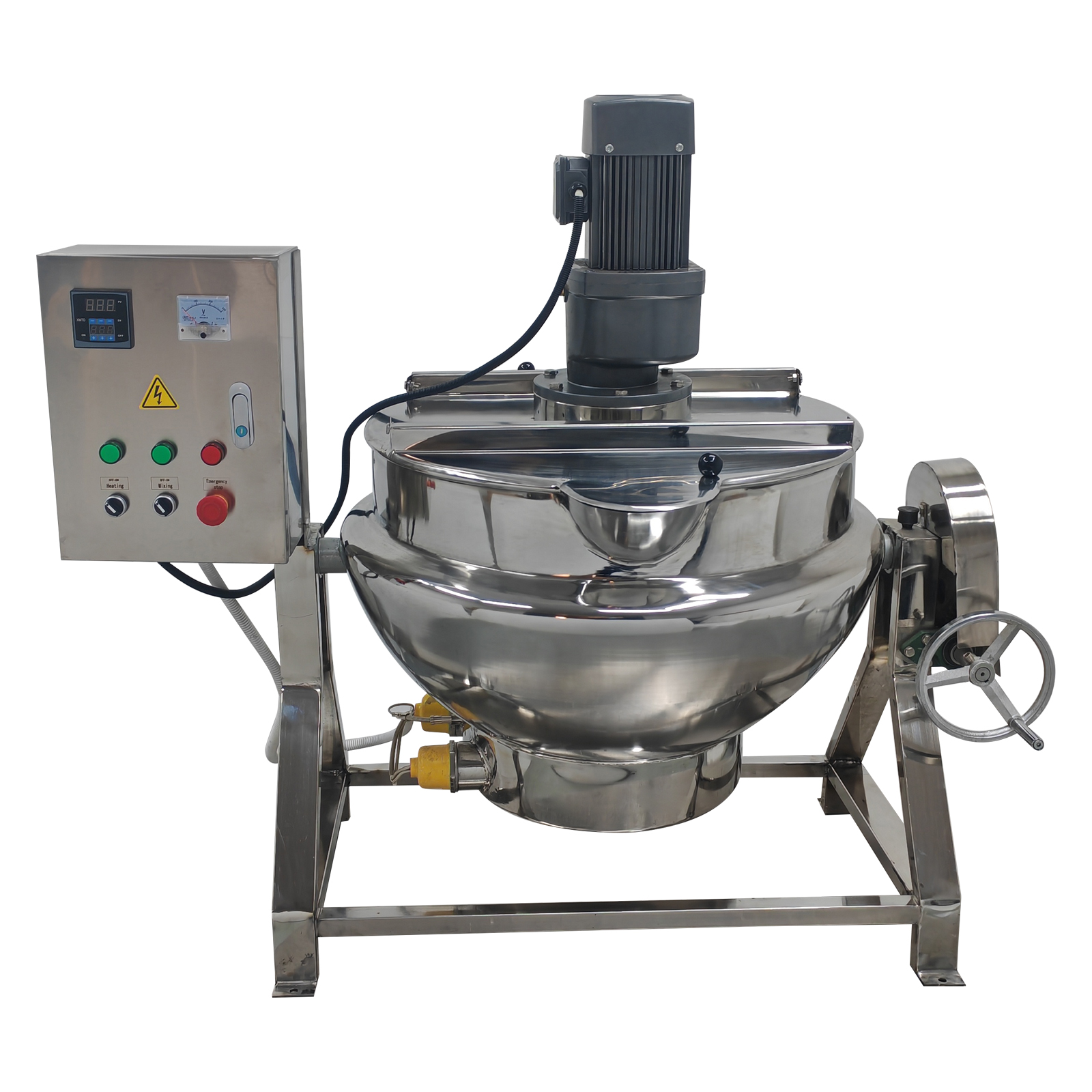

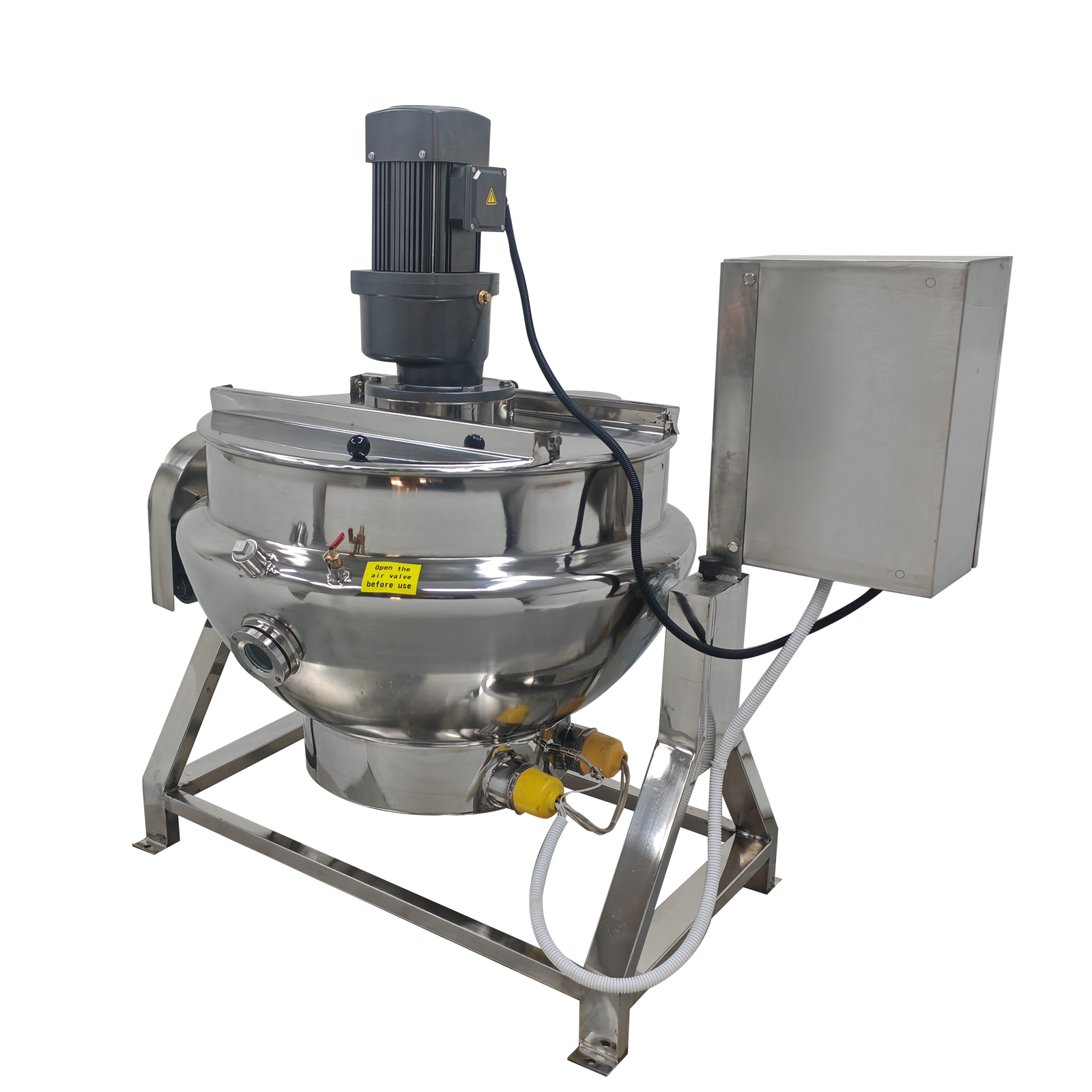

Sandwich pot also known as steam pot, cooking pot, sandwich steam pot. It usually consists of a pot body

andlegs. The pot body is a double-layer structure composed of the inner and outer spherical pot bodies, and

the middle layer is heated by steam. There are fixed, tilting, mixing and other styles.  Sandwich pot is widely

used in the processing of all kinds of food, can also be used in large restaurants or dining halls to boil soup,

cooking vegetables, stew meat, porridge, etc., food processing to improve the quality, shorten the time,

improve the working conditions of good equipment.

 Parameters

Voltage: 220V 60HZ 3 PHASE

Electric heating power: 12 KW

Motor Power：1.1KW

Volume: 100L 26.5Gallon

Stirring rate：24 r/min

Maximum working pressure: atmospheric

pressure

Maximum operating temperature: <180 degrees in

the pot ＆sandwich <250 degrees

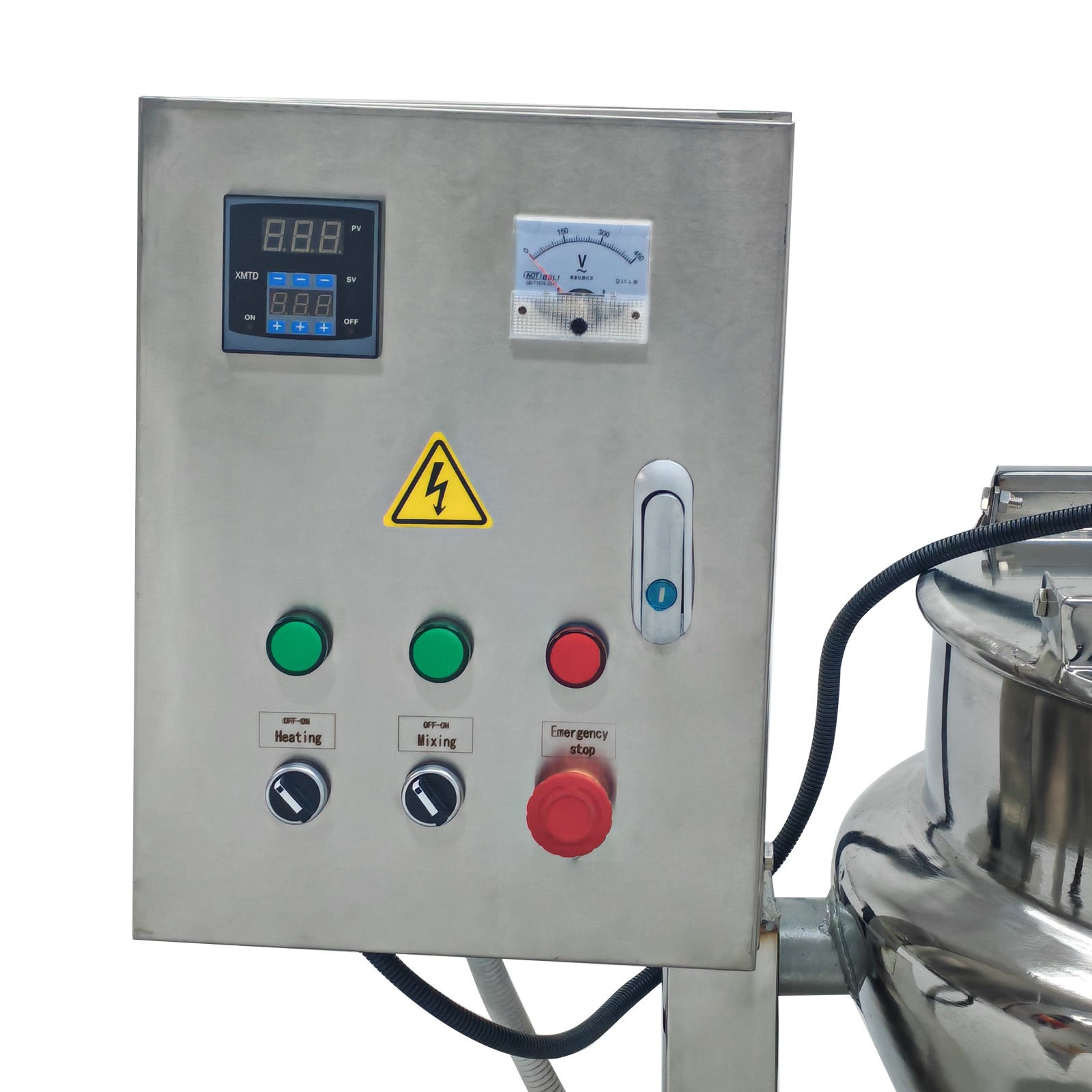

Electric control panel

Equipped with digital display temperature

controller,controllable temperature control, two

heating controllers, which can be used for single or

simultaneous heating.

Four scraper plates made of teflon material

The agitator is made of polytetrafluoroethylene

material scraper and equipped with four. During the

rolling and stirring process of the material, the agitator

fully contacts the pot body in all directions, ensuring no

mixing dead corners

Rotary handle

The rotary handle controls the inclination, and the pot

body can be tilted by 90 degrees. The lever principle is

adopted, and the operation is convenient and simple

Heating mode

Electric heating mode, large heating area,uniform

heating, high thermal efficiency,and easy controlof

heating temperature

level.

2. Clean the pot and put the material into the pot.

3. Before starting the machine, please open the exhaust valve.

4. Turn on the gate and close the filling valve. You can let the body of the pot be tilted and discharge the

material by tilting the sandwich pot and turning the hand wheel.

vary slightly. We will ship them randomly.

prepared food and daily chemical industry. The cooking of ejiao, mixing and combining in pharmaceutical

industry, and processing in meat products, stir-fried filling, sauce, prepared food, candy, pharmaceutical,

dairy, beverage, canned food and other food industries.

1*Jacketed Kettel 100L 220V 60Hz

You can make order with no worry.

Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.

Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the

weekends & public holidays.

Warranty: 6 months' warranty for the machines, not for the consumables.

We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us

with low cost.
