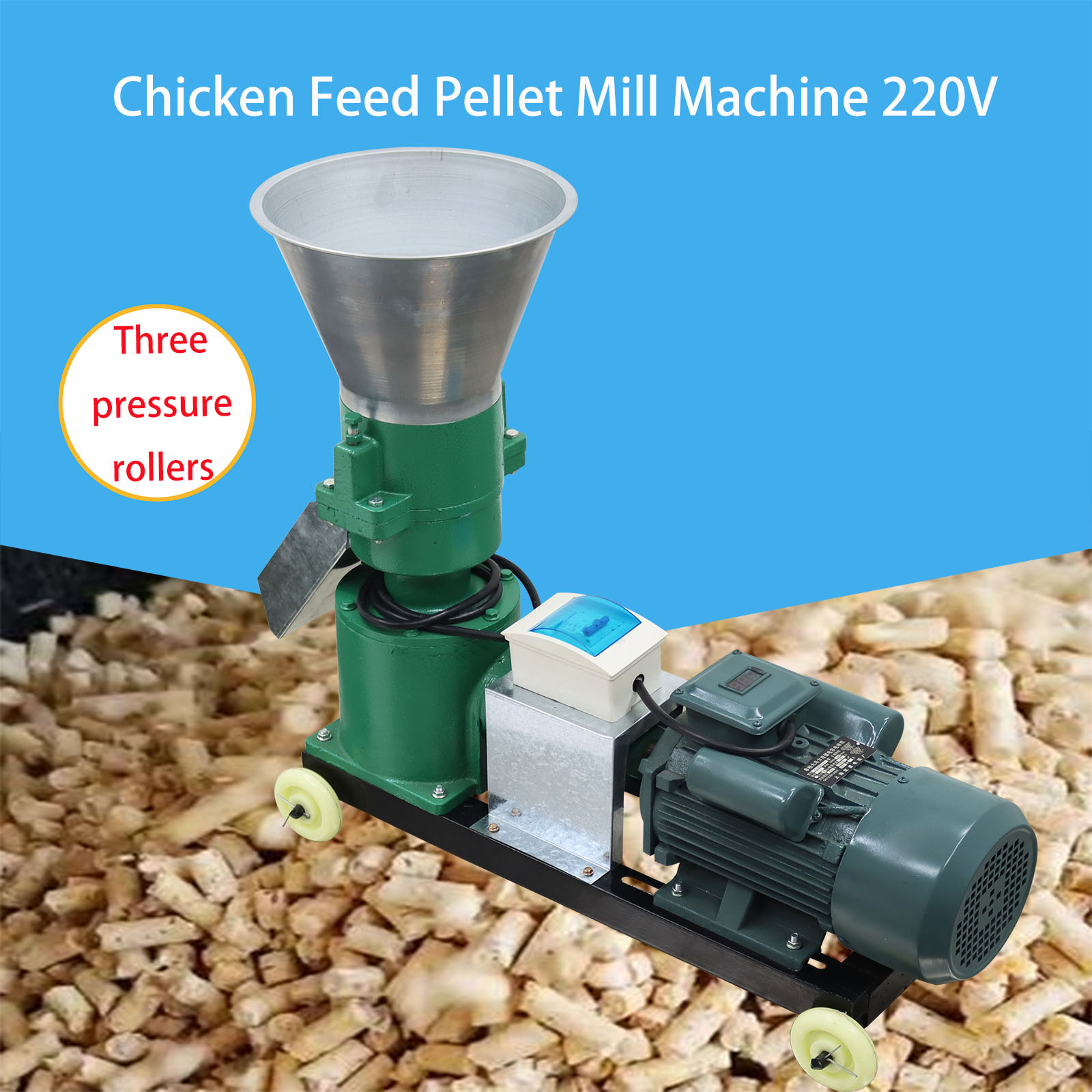

Farm Animal Pellet Mill Machine, Chicken Duck Feed Pellet Mill Machine 8mm

Chicken Feed Pellet Mill Machine 8MM



Feed granulator is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small feed processing plants.

Note: 1. Before using the machine, it is necessary to adjust the screw of the pressure roller to the appropriate position. The pressure roller and the pressure plate should be closely combined, and the two adjusting screws should be on the same horizontal plane. 2. Please fill the oil tank before using the machine. Do not idle the machine for more than 2 minutes. 3.Double-check the belt and the screws before operation. 4.Clean up the rest after use to prevent damage to the machine.

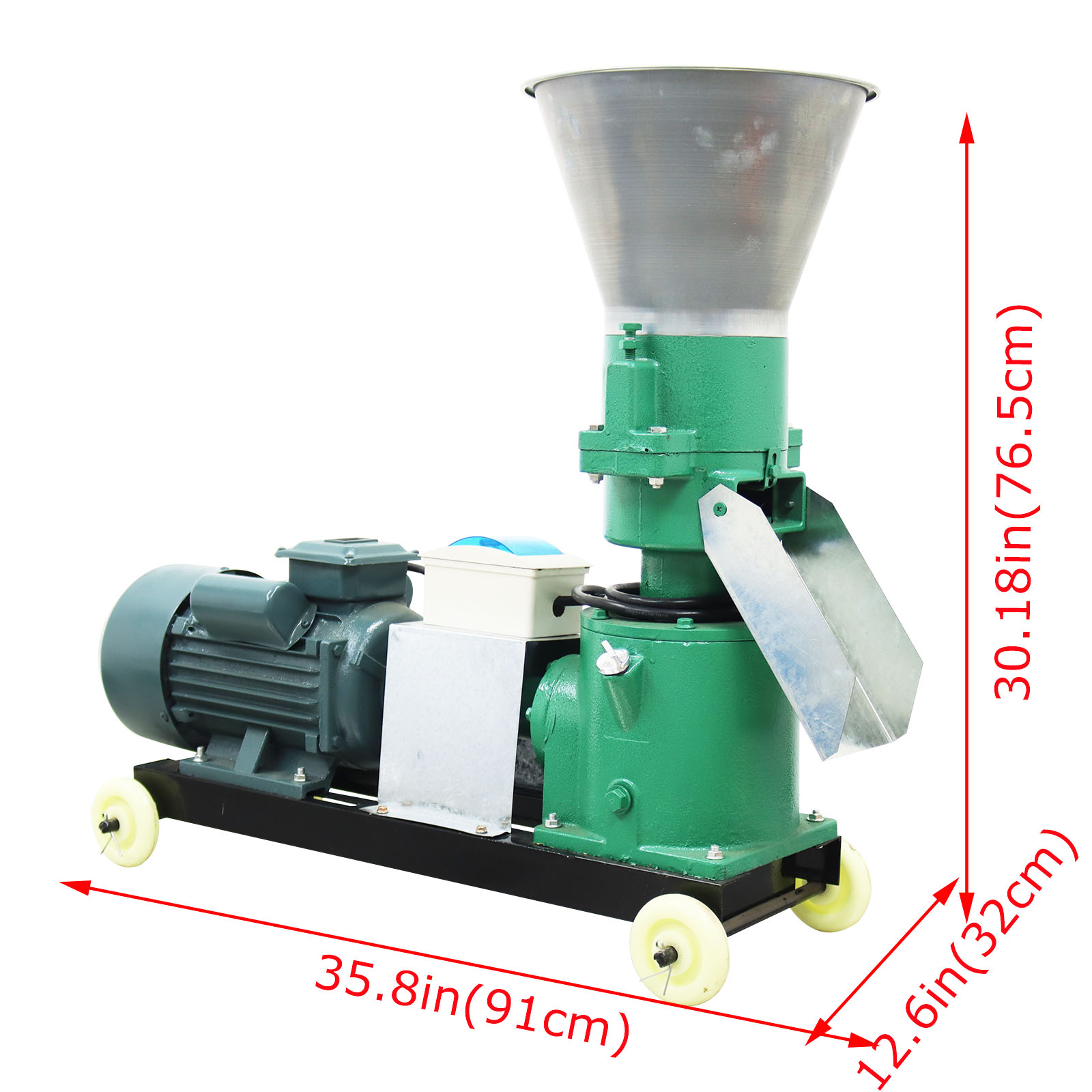

Product parameter:

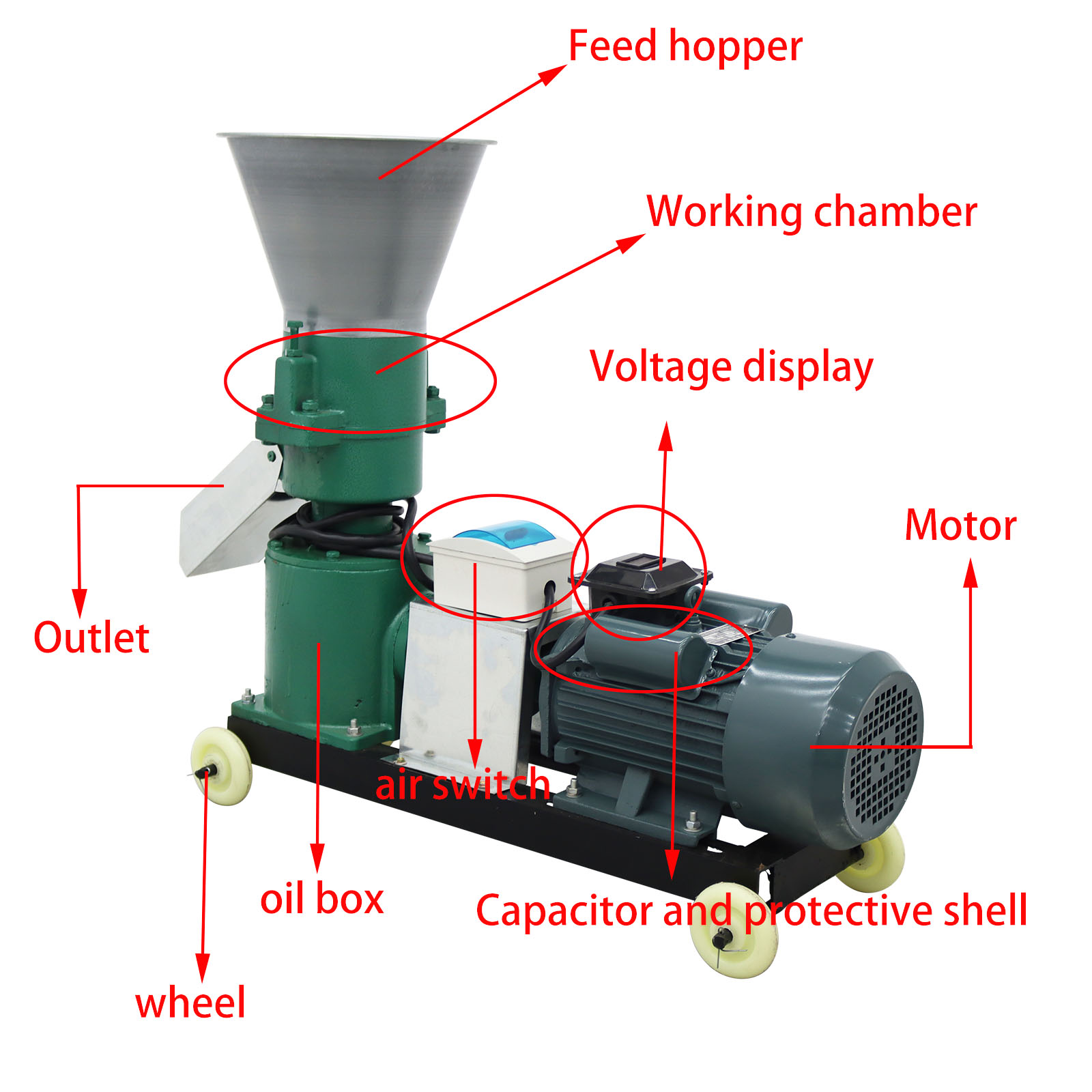

Product analysis:

Feature:

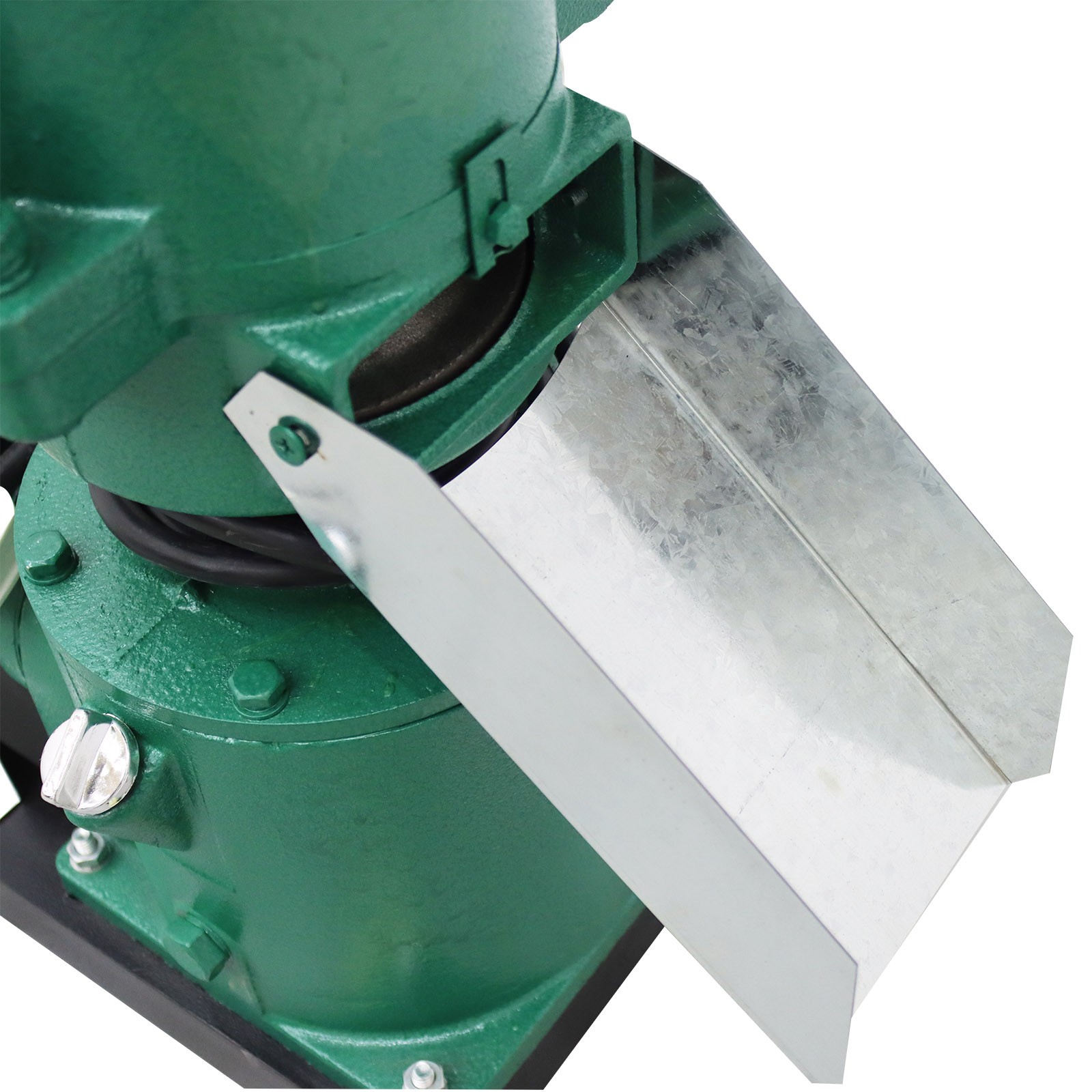

	This machine is equipped with an enlarged and widened discharge port to prevent feed splashing and facilitate the collection of feed by customers.

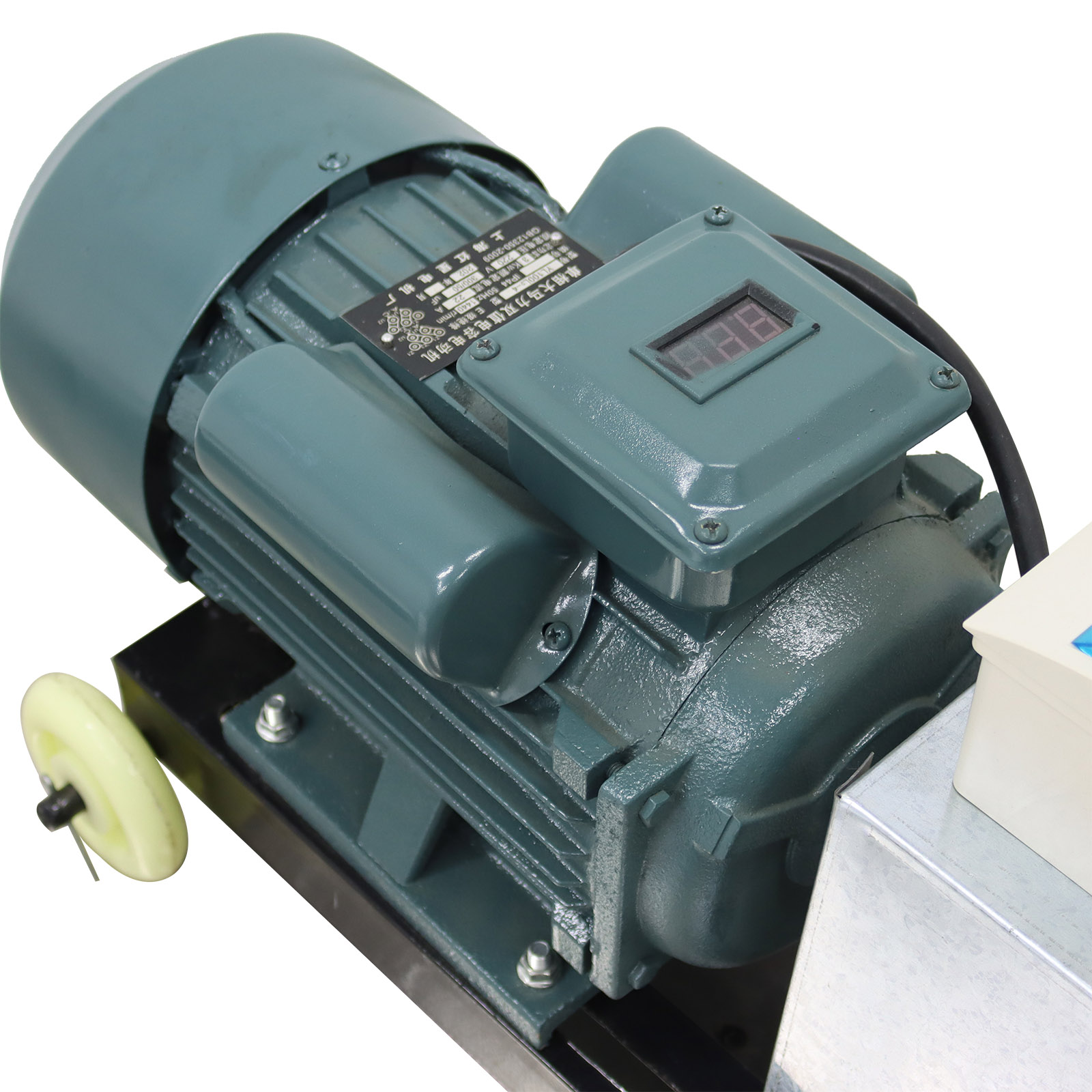

This machine is equipped with a voltage display, which can visually see whether the voltage is stable.

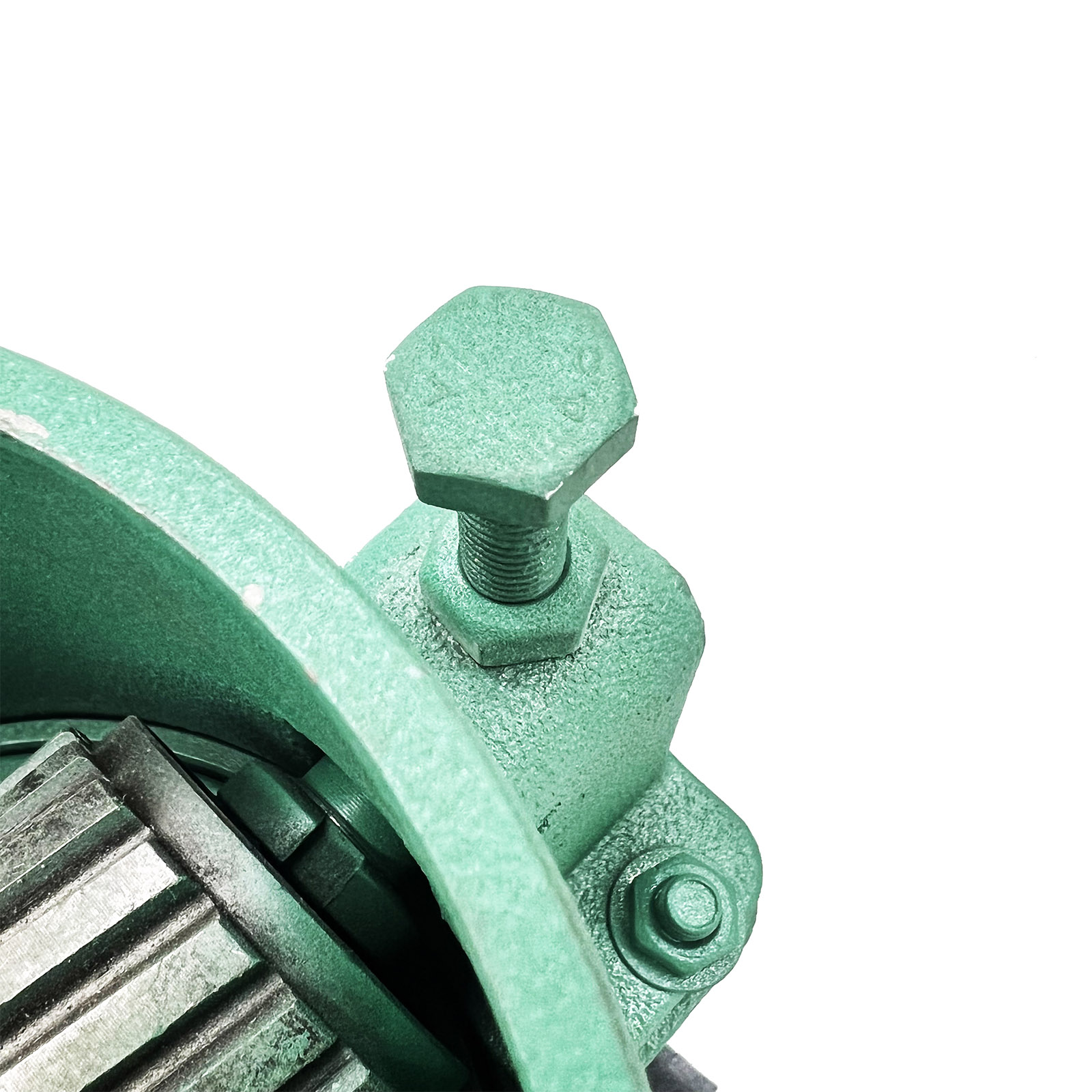

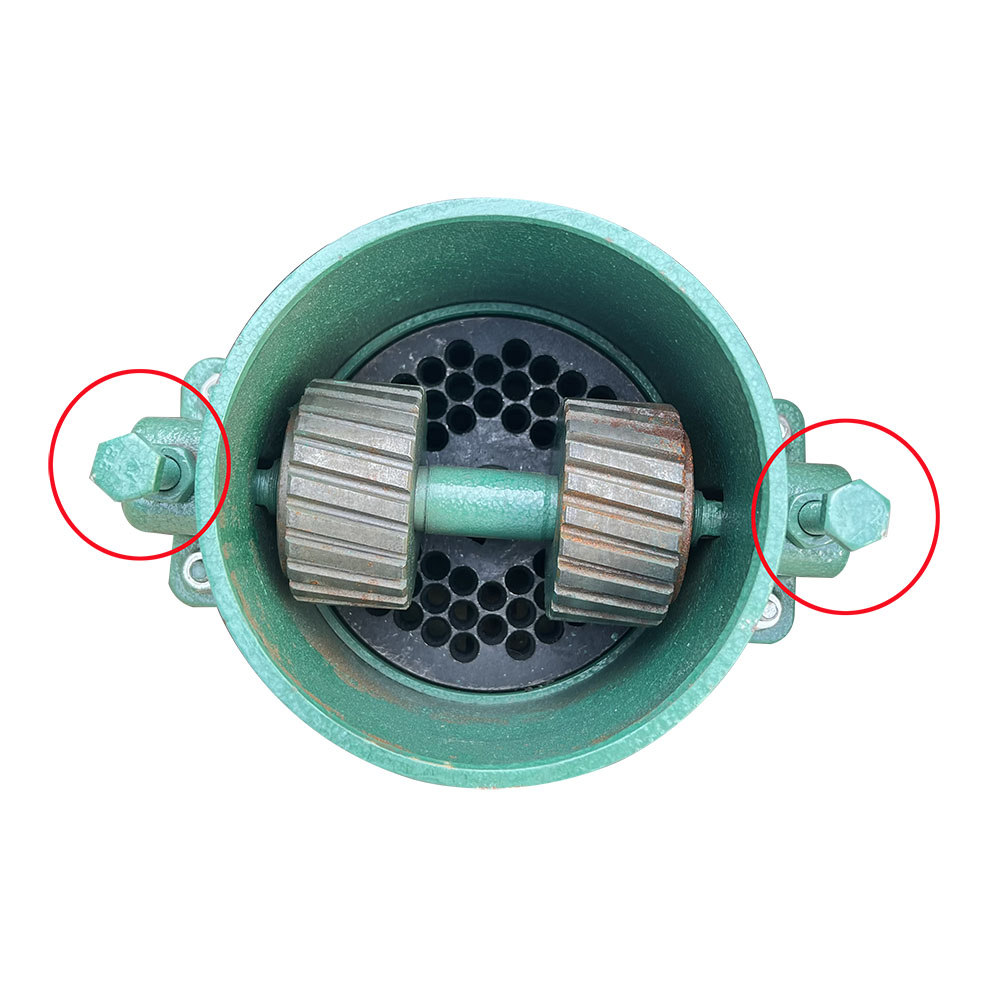

	Adjustable nut Used to adjust the distance between the pressure roller and the grinding disc. When making pellets, the nuts on the two sides must be balanced to avoid damage to the pressure roller and grinding disc.
Enlarge the feed inlet The machine adopts the design of enlarged feed port, which makes it more convenient for you to feed and effectively improves work efficiency.

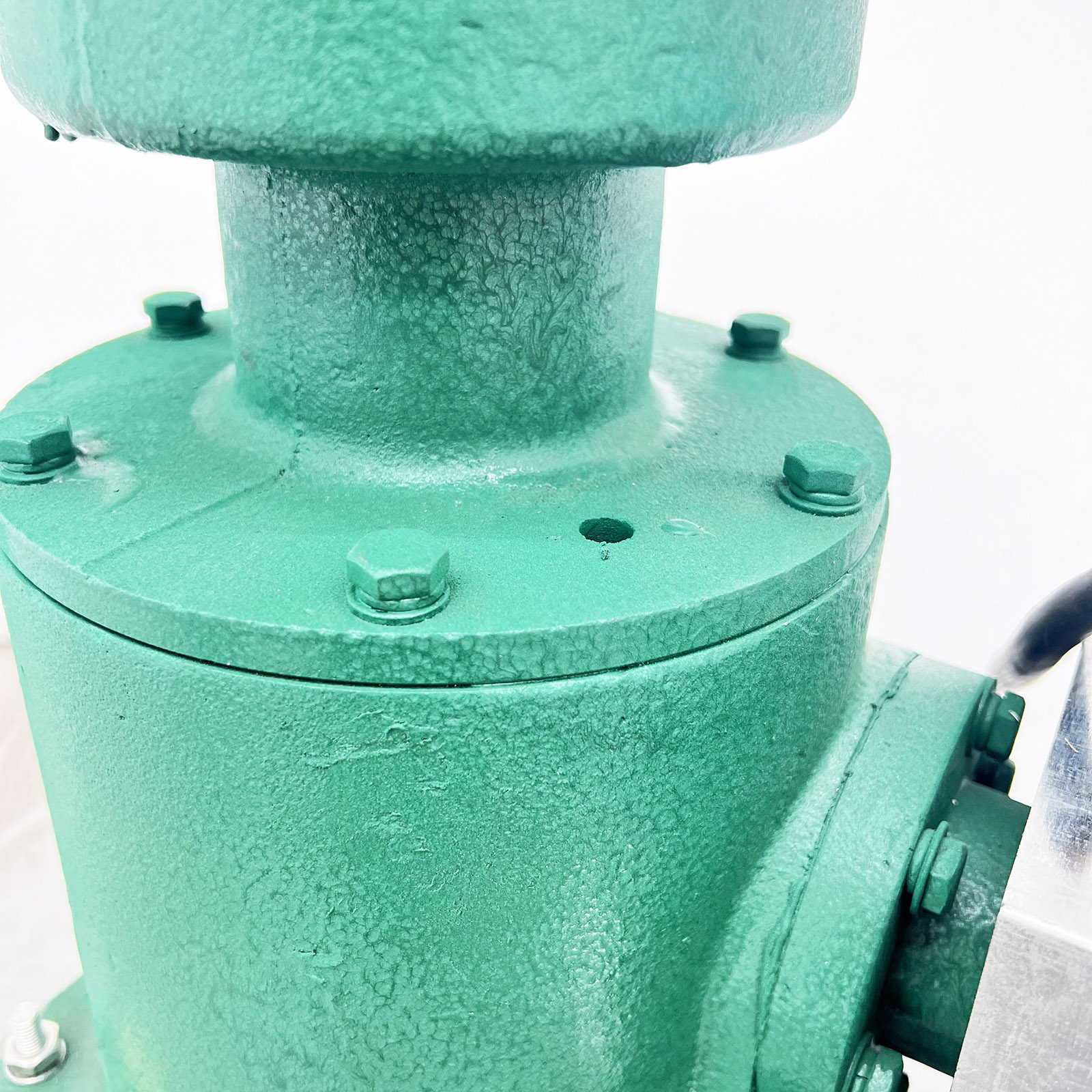

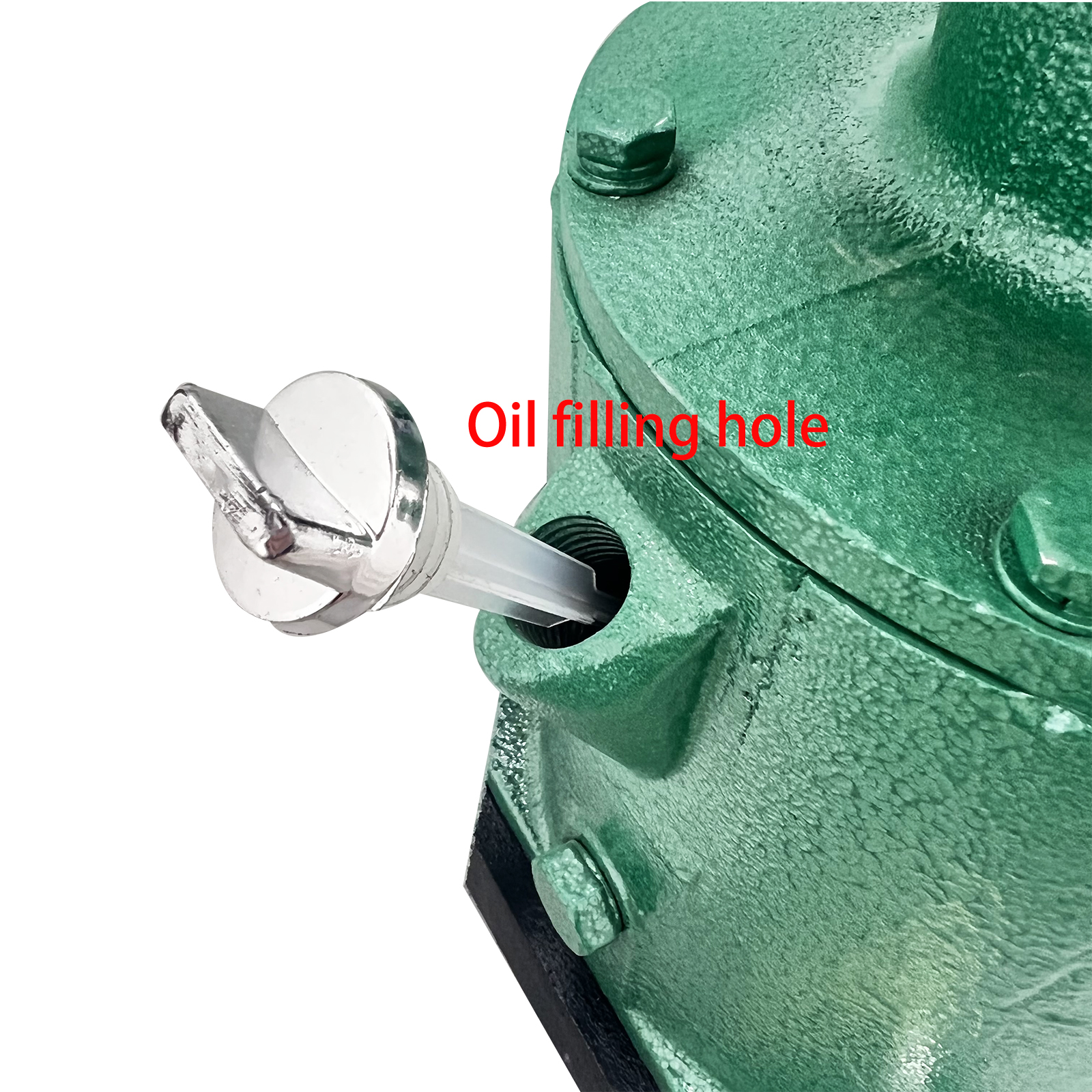

	Here is the filling port, open here to add engine oil It is recommended to add high-quality machine oil or hyperbola heavy-duty gear oil.

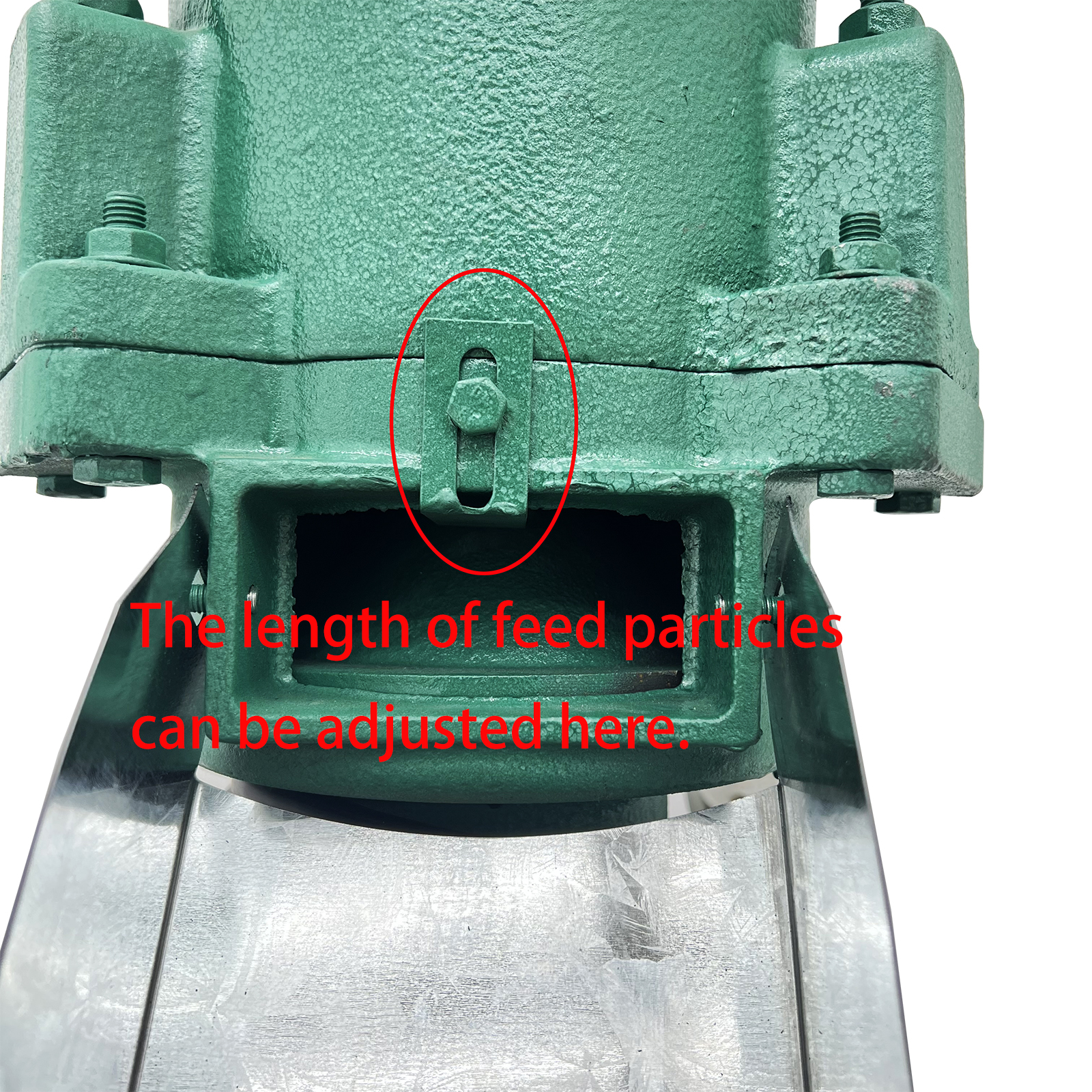

The length of feed particlescan be adjusted here.

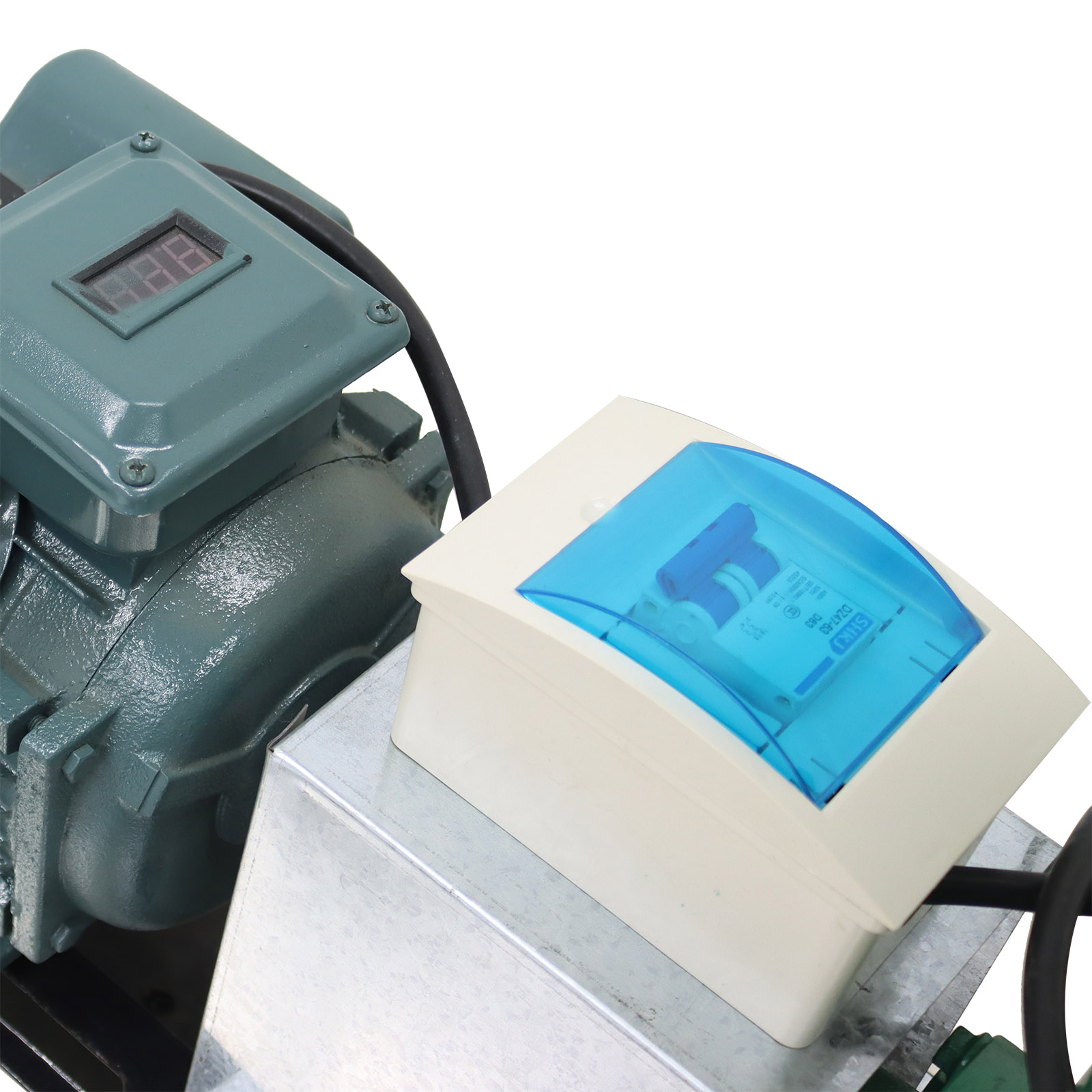

	The machine is equipped with air switch, which is safer to use.

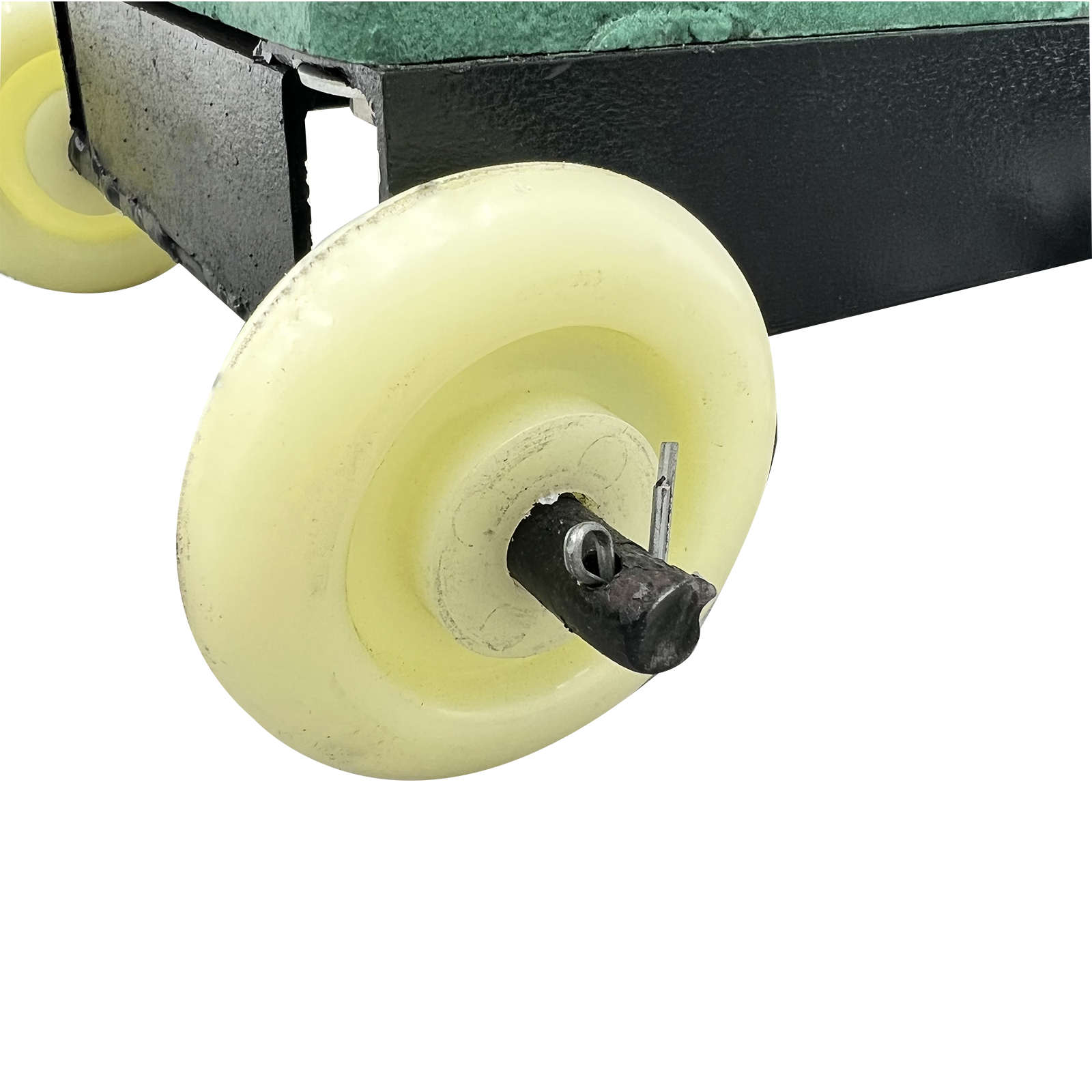

Nylon wheels are adopted, which are more wear-resistant and durable.


Precautions:

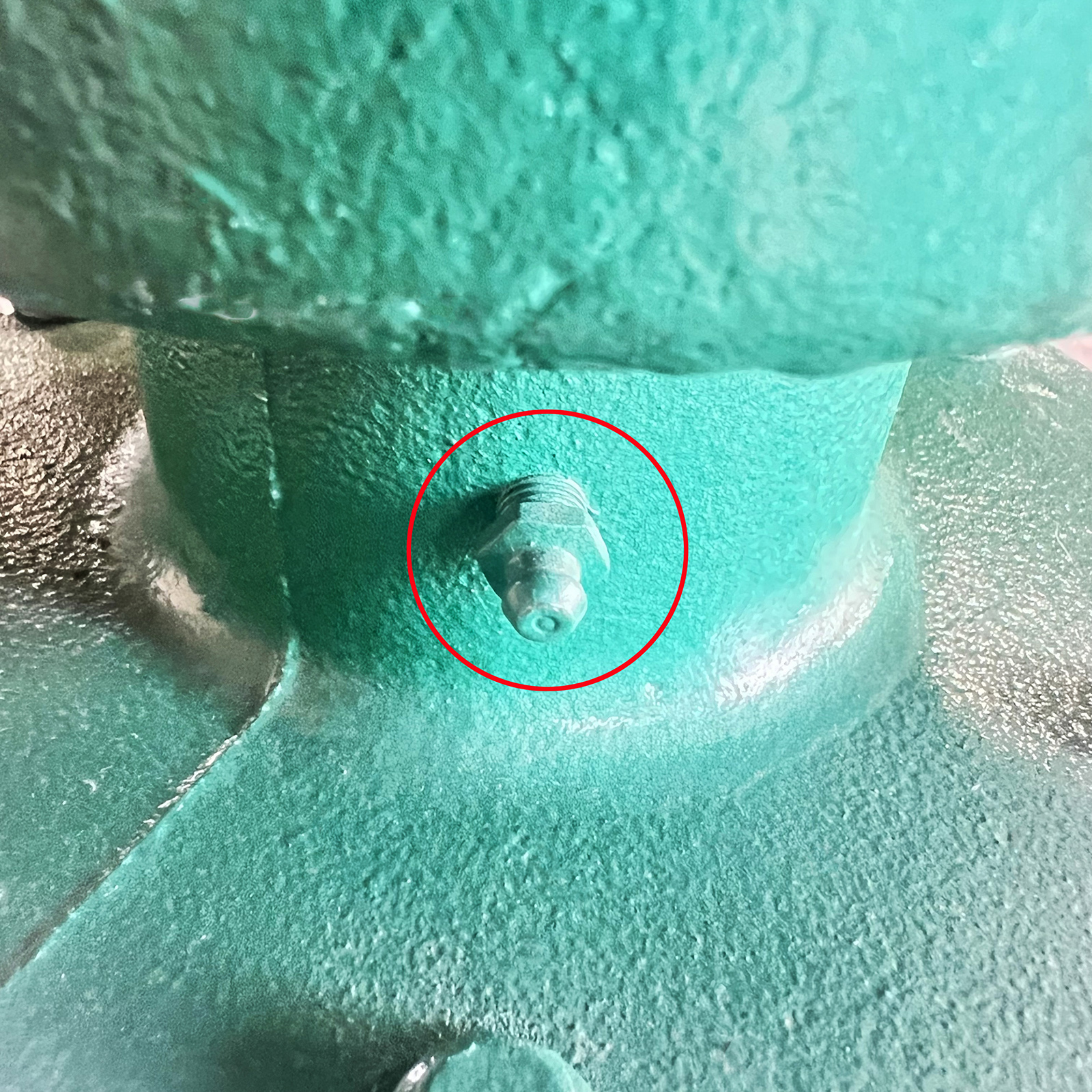

1.When using, it should be noted that there should be no foreign matter such as stones and ironblocks in the raw materials. After the pellet machine has been working continuously for morethan ten shifts, the pressure roller oil hole, the universal joint oil hole, and the linkage shaft oilhole need to be filled with high-temperature lubricating grease to make the pressure roller Goodworking performance and extended bearing life. 2.During granulation, it is strictly forbidden for the pressure roller to contact with the templateto run idly, and the continuous feeding can not be interrupted.At the same time, the pressureroller shaft nut is locked to avoid loosening and damaging the spindle keyway. 3.When granulating, there is no granulation, no discharge, the template should be removed, andafter opening one by one, some fiber feed can be added appropriately to restart the granulation. 4.Always check the tightness of the screws in each part of the machine. If there is oil leakage inthe gearbox, replace the oil seals in time, and check whether the bearings in the machine headare short of oil. 5.When the pellet machine is working, do not reach into the feeding port with your hands. Ifnecessary, use wooden sticks to help feed the pellets. 6.Before turning on the machine, it is necessary to add less material before turning on the machine. When shutting down, leave a small amount of feed in the machine to prevent the pressroller of the machine from contacting the template from idling. 7.If the machine is stuck in operation, stop it immediately, press the pressure roller until thebolt is flat,and then restart the machine. 8.Each time the work is completed, the adjusting pressure roller bolts must be loosened. 9.Iron or stones cannot be put into the griller. 10.Check the elasticity of the belt, and the bearing frequently. Add oil in time when it needs to.
Note: We suggest that high-power machines should be directly connected to the main power supply, as the voltage reaching the machine is stable. If the voltage is unstable and the current exceeds the rated current of the motor, it is easy to burn out the starting capacitor. It is recommended to directly connect to the power supply as much as possible. If the machine is not connected to the power supply, different situations may occur, and the wires are not durable. The wires will gradually burn out over time.
Details:



Usage and specification:

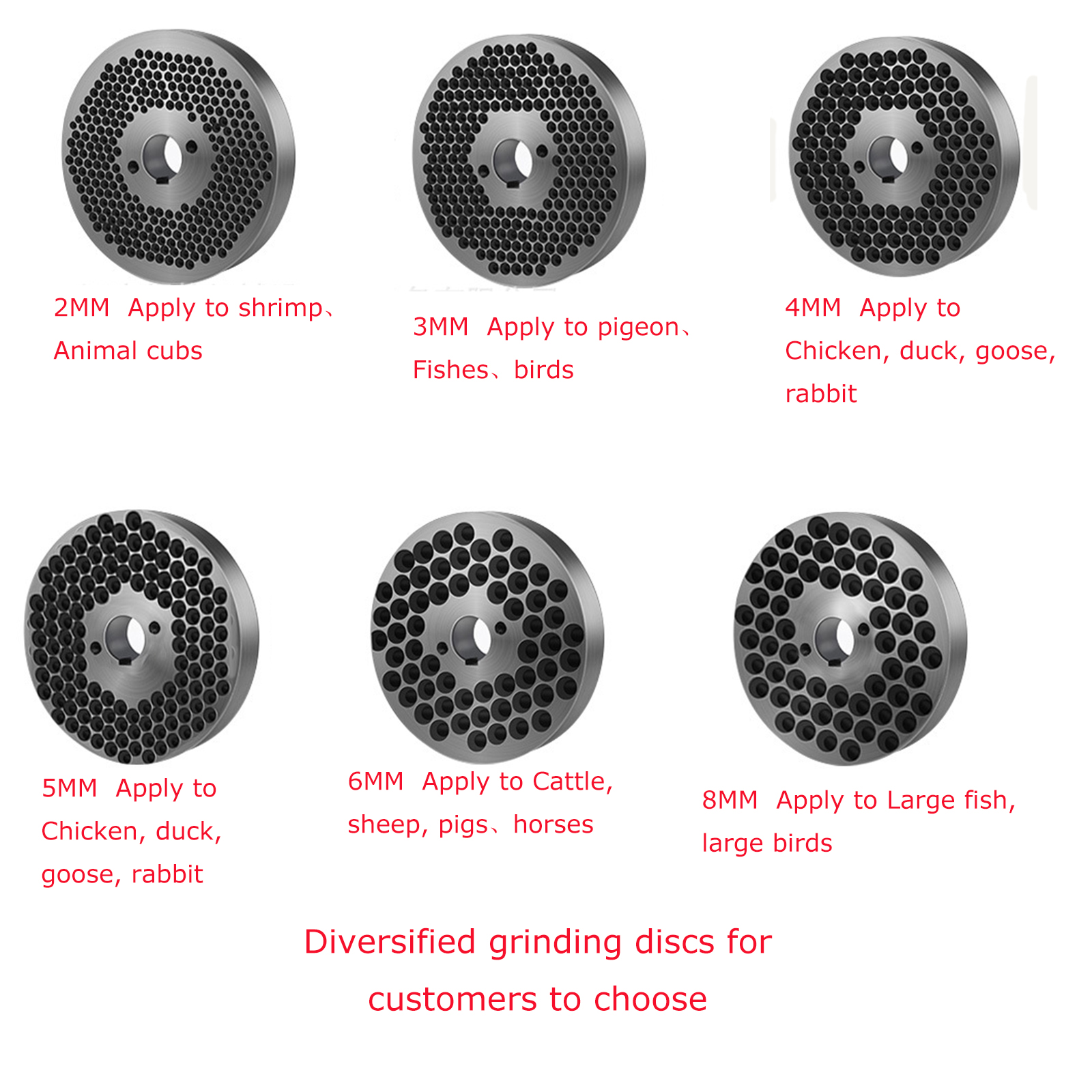

1: It applies to chicken industry. 2:Corn particles can be put into the machine directly. The feed processed by the machine is smooth and has moderate hardness. The temperature-change during the process is slight so the nutrition can be contained very well. 3:The practical’s diameter of the holes can be divided into: Φ2, Φ3, Φ4, Φ5, Φ6, Φ8. 4:The microorganism and parasite can be killed during the process by extrusion.
Operating principle and product advantages:
Small feed granulator, also known as small household feed granulator, is based on the principle of circular motion. The template and pressure roller are made of high-quality chrome-manganese titanium and are specially treated. The main shaft and flat mold drive the pressure roller to rotate under the action of friction. The materials are gelatinized at high temperature between the pressure roller and the template, and the protein is solidified and denatured. The particles are discharged from the mold hole under the extrusion of the pressure roller. The particles made are sent out of the machine through the throwing plate, and the length of the particles can be adjusted through the incision. This product model is a new energy-saving product. In the past, the feed was usually processed into powder and then fed, which had some defects such as inconvenient feeding, poor palatability, picky eating of livestock, and low utilization rate. With the advent and popularization of new small pellet feed machinery, powder feed can be easily processed into pellet feed. Lighting electricity can be used as the power to press the granulation from the die hole under the extrusion of the press roller, which can easily adjust the length of the granules. Its structure is simple, the floor area is small, the noise is low, and it has many advantages after processing into pellet feed.
Product display:

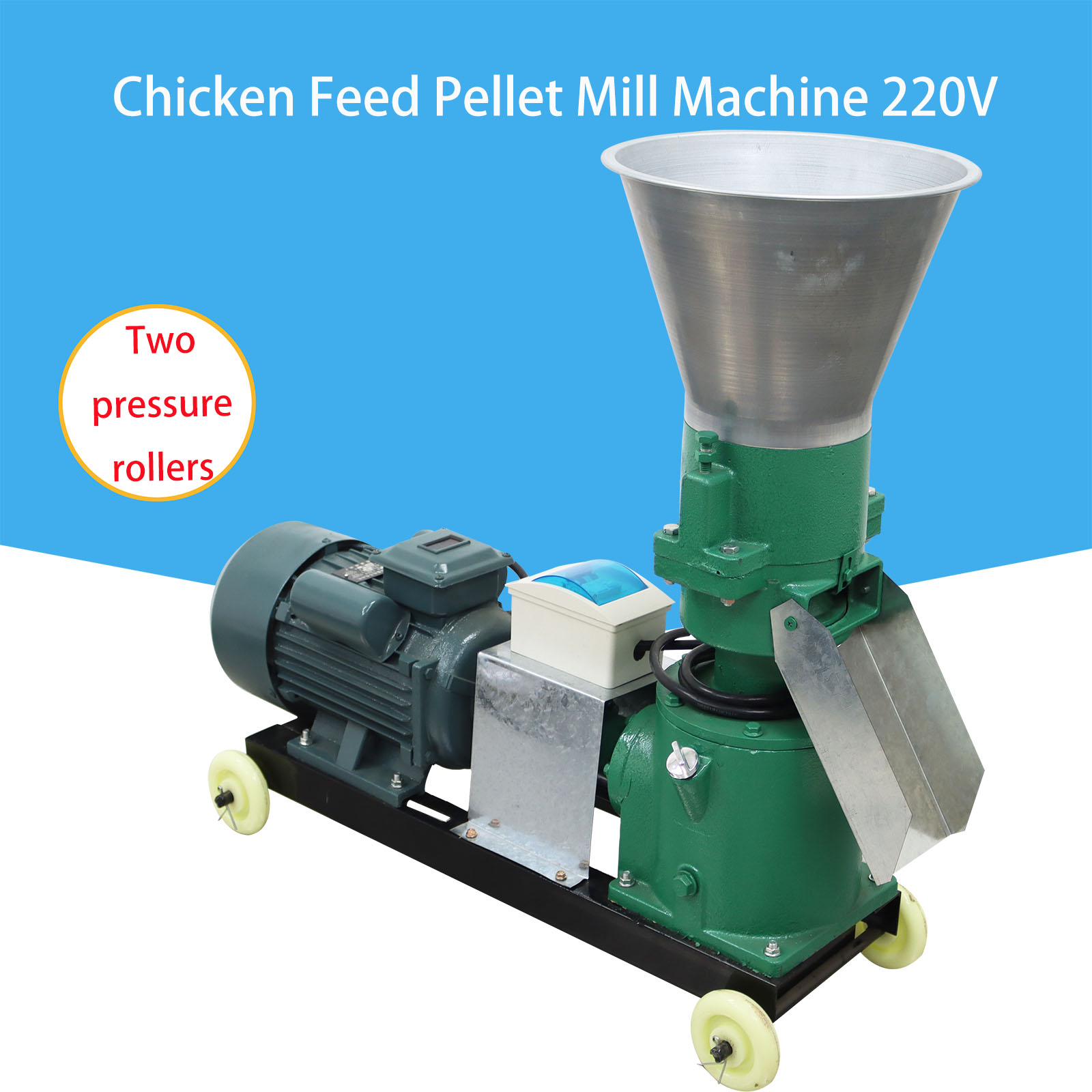

Item Number: 1*Chicken Feed Pellet Mill Machine 220V (239400)

You can make order with no worry. Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
